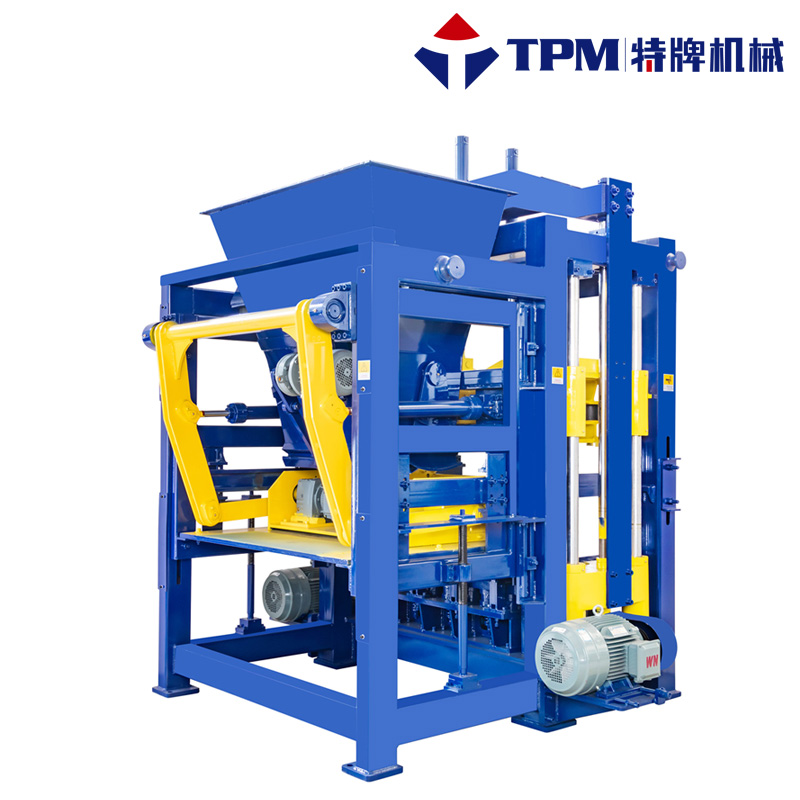

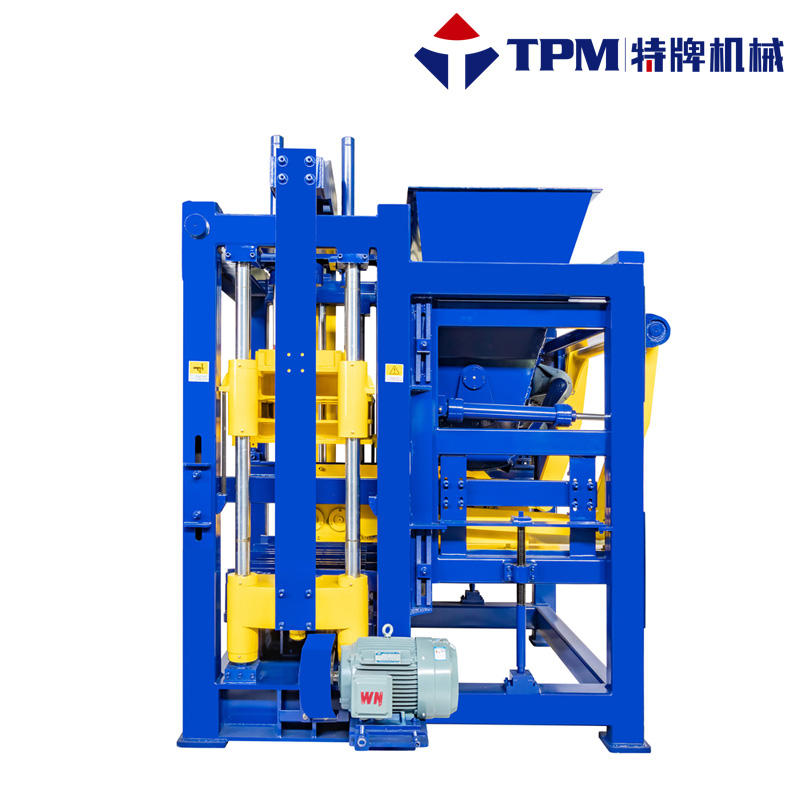

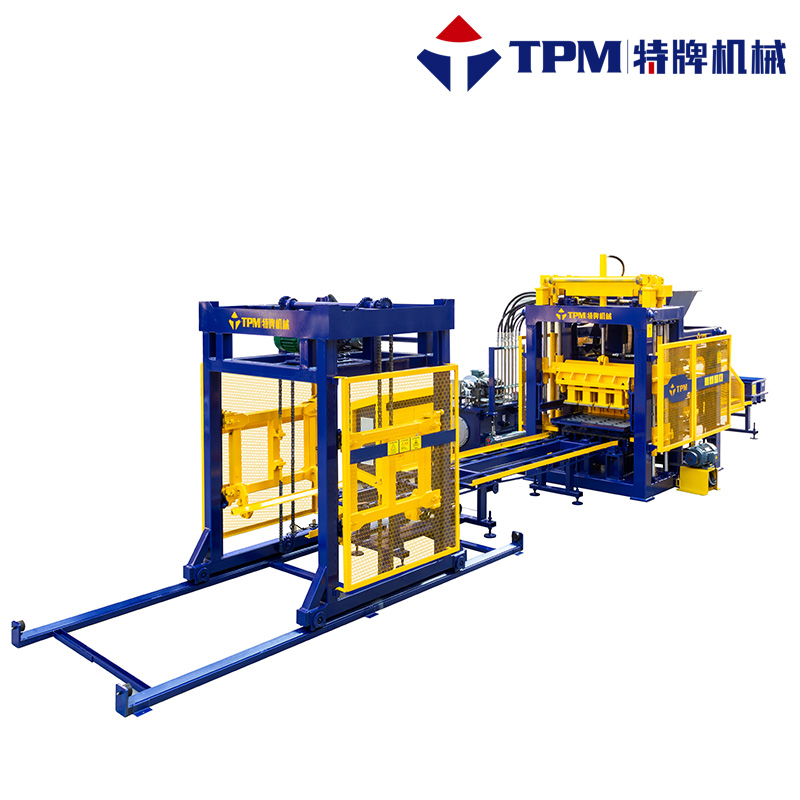

Fully automatic cement brick/fly ash brick making machine for sale(TPM6000)

Home

Chinese Design Concrete Block Machine

Fully automatic cement brick/fly ash brick making machine for sale(TPM6000)

fully automatic fly ash brick making machine

Fully automatic cement brick/fly ash brick making machine for sale(TPM6000)

TPM6000 automatic cement brick machine can produce 1800 pcs fly ash bricks per hour. It's SIEMENS PLC controlled, use 2×9KW permanet magnet vibration motors.

Pallet size: :
880×680mm
Forming area: :
830×630mm
Vibration force: :
60~80KN
Production height: :
50~200mm
Control system: :
Germany SIEMENS PLC Control
Power consumption: :
41.85KW
Machine weight: :
9.5Ton (With face hopper)

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Fully automatic cement brick machine for fly ash brick production:

TPM6000 Automatic Ash Brick Machine Technical Features:

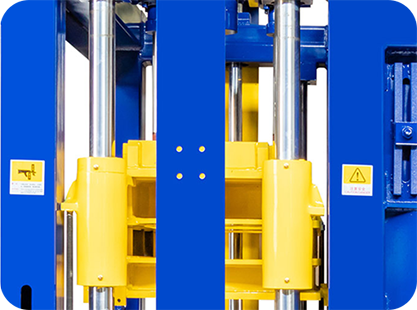

Heavy Duty Frame

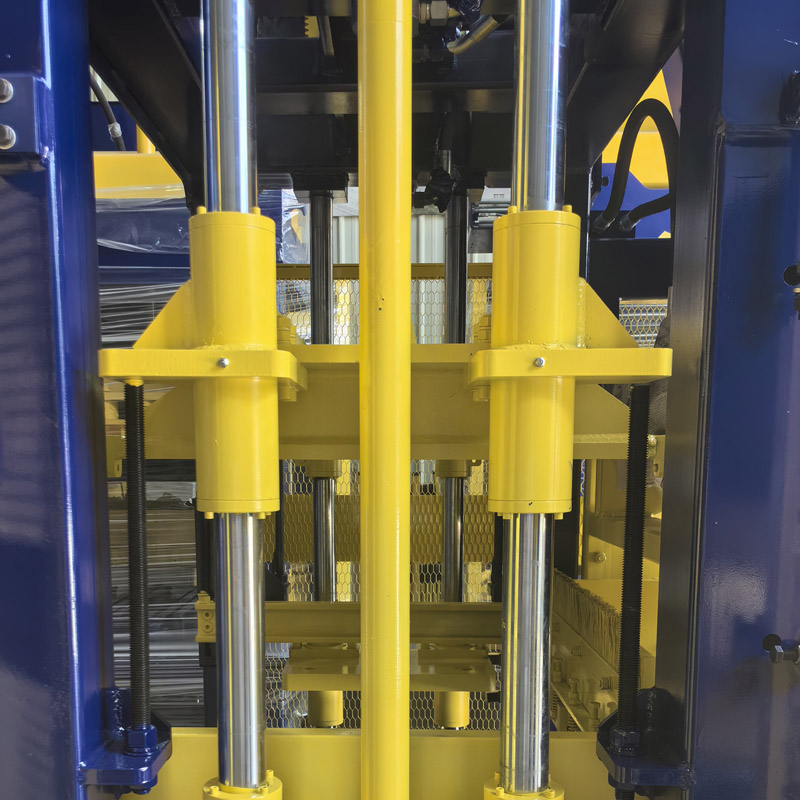

The fly ash brick manufacturing machine features a robust construction using 150 × 150 × 8mm thick square tubes for main columns and four Φ70mm solid guiding rods, ensuring stability and durability

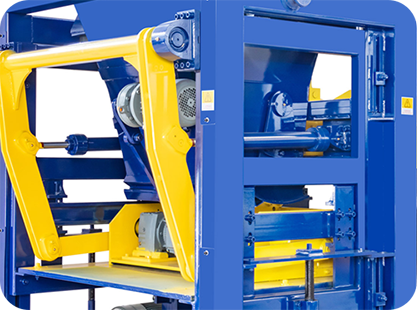

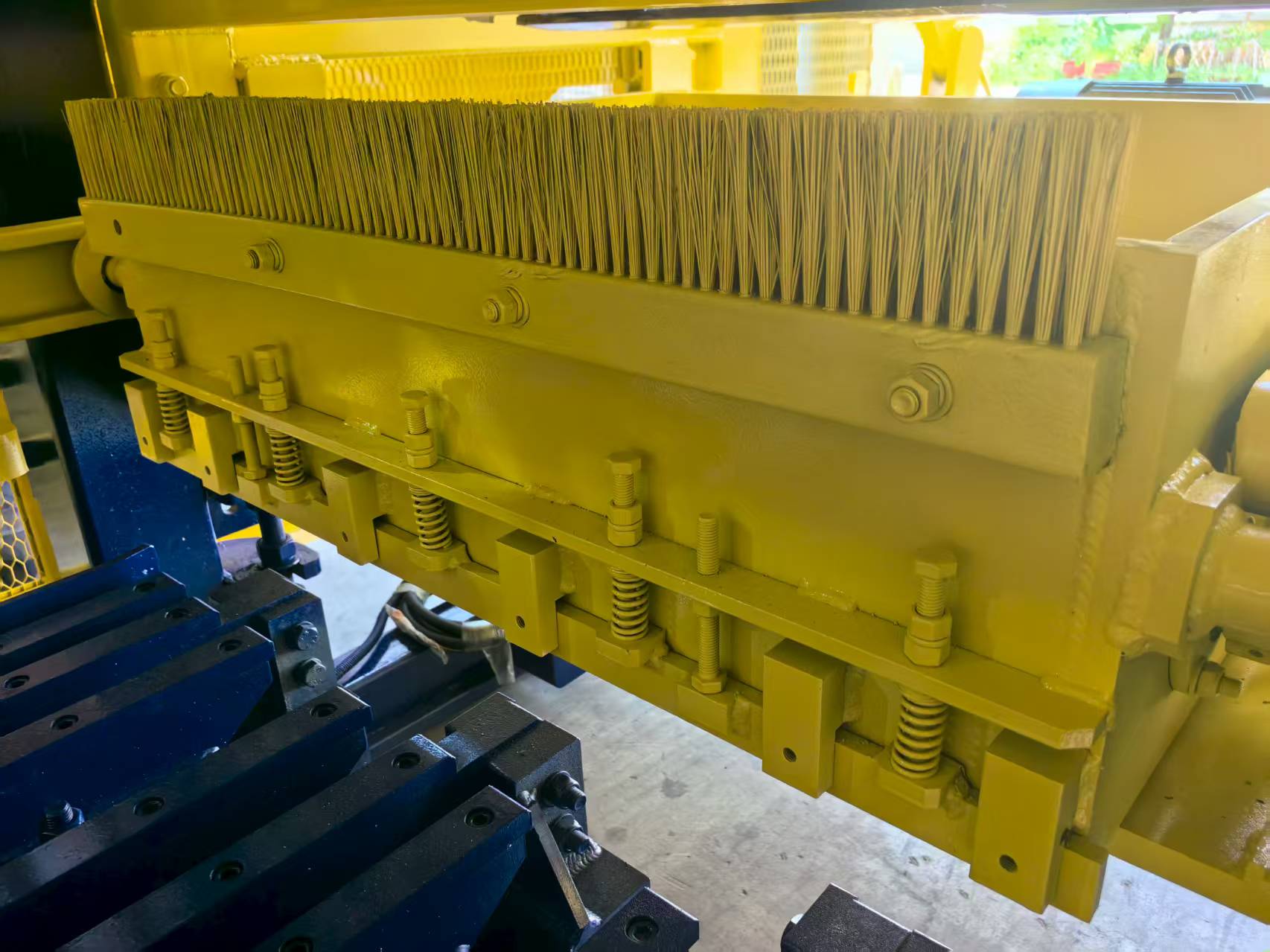

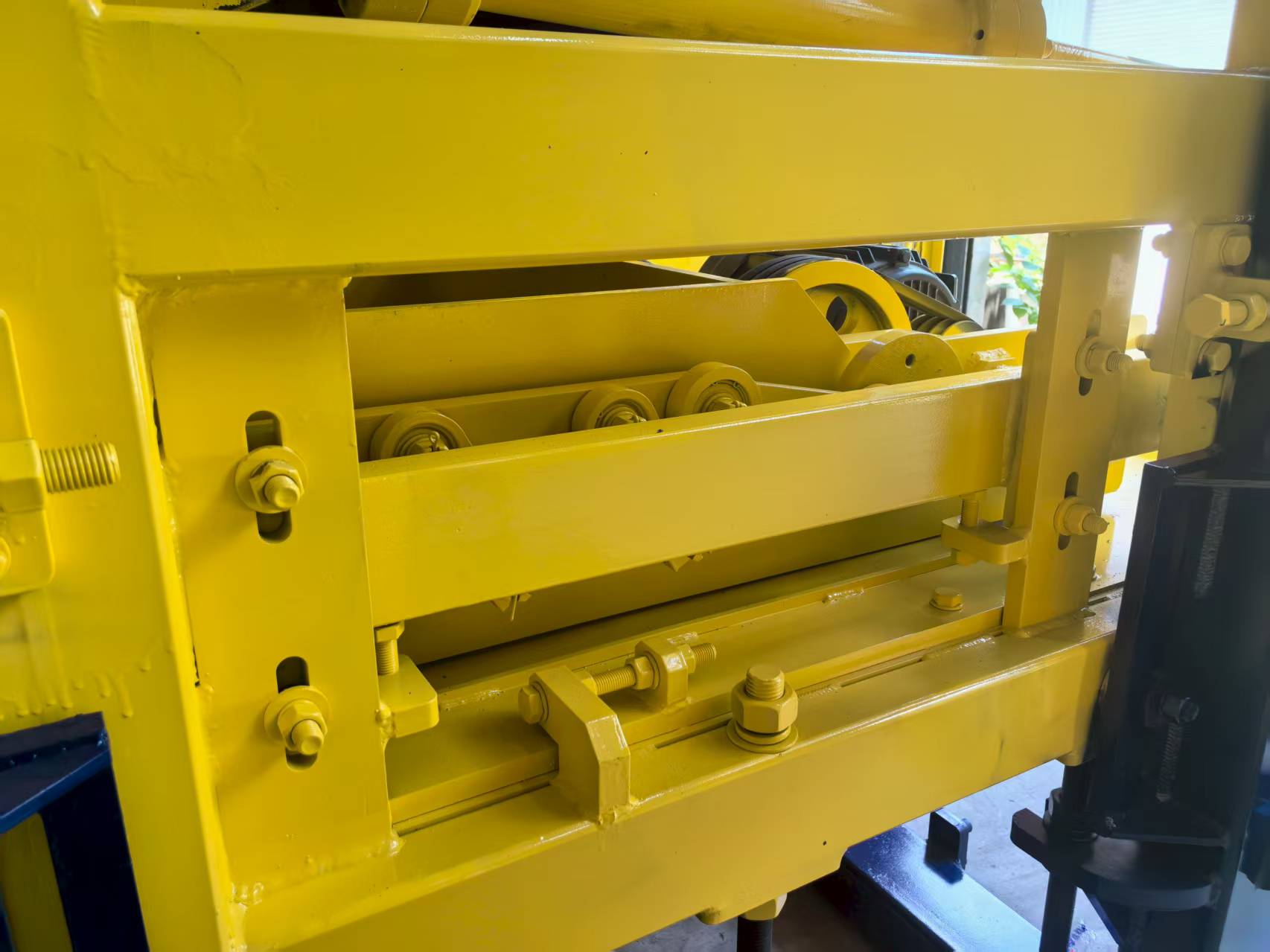

Efficient Material Feeding Car

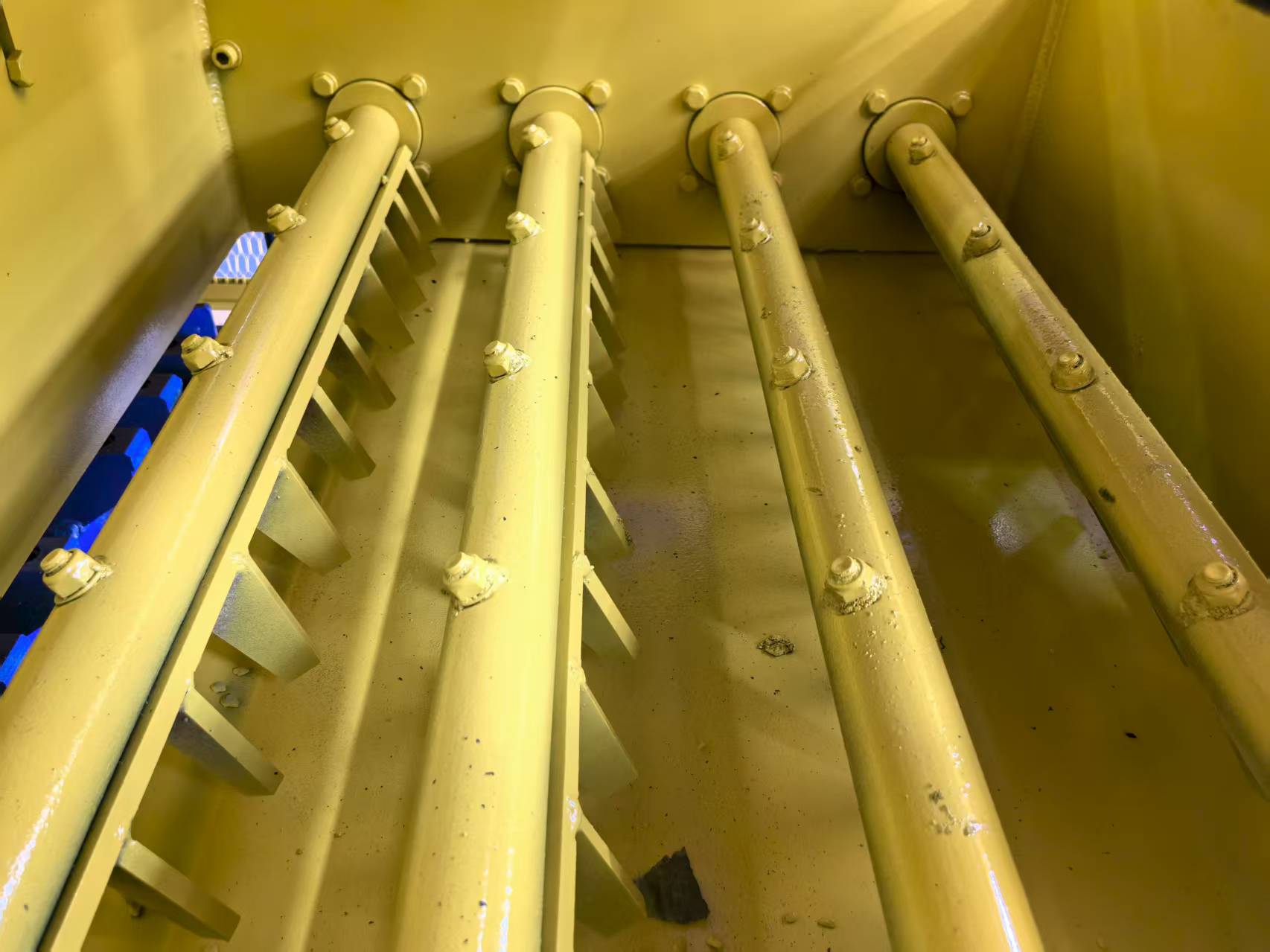

Equipped with double swing arms, the speed of raker for feeding car is adjustable via frequency invertor according to different types of concrete products, thus concrete can be filled uniform and quickly into cavities(Cycle time for bricks 10~12s and for hollow blocks 15~18s)

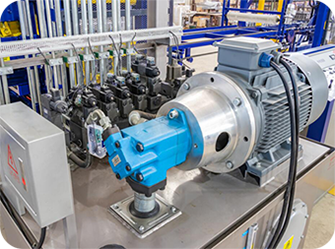

Advanced Hydraulic System
Utilizing a high dynamic dual proportional valve, the hydraulic system efficiently controls oil flow and pressure, ensuring powerful machine speed

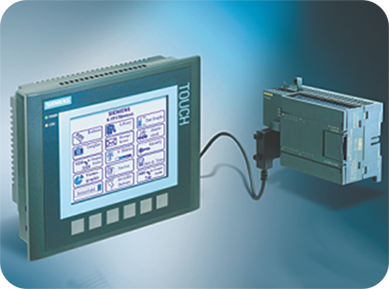

SIEMENS PLC Control System
Adopt Germany SIEMENS PLC control system & Italian hydraulic system, vibration system is controlled via two 9KW permanet magnet vibration motors(Double independent frequency invertor), help save 30% power and cycle time improve 30%;
Vibration table
Static & dynamic vibration table design, can control vibration amplitube, ensure higher energy transfer efficiency.

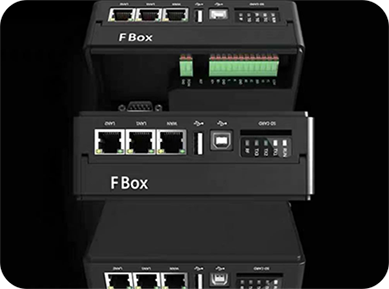

Online trouble shooting system
The online function of real-time monitoring and troubleshooting enables swift resolution of circuit faults and most electrical issues without delay.

TPM6000 Flyash Brick Making Machine Technical Parameters
Pallet size: 880×680×25mm	Vibration Force: 2×9KW (permanent magnet vibration motor)
Forming area: 830×630mm	Dynamic and static structure vibration table
Control system: Germany SIEMENS PLC	Feeding car design: Double swing arms driven
Products height: 50~200mm	Hydraulic system: 18.5KW
Products strength: 7.5~60MPa	Hydraulic system: 18.5KW
Cycle time: 12~20s	Power consumption: 41.85KW
Machine weight: 9.5 Ton(With face hopper)	Vibration force: 60~80KN
Machine weight: 9.5 Ton(With face hopper)	Vibration frequency: 50~60Hz

Automatic TPM6000 Cement Brick Press Machine Production output in one shift:
Size	Photos	Quantity per cycle	Maximum output in 8 hours
400×200×200mm hollow bricks		6 pcs	9,000 pcs
230×75×110mm Fly Ash Bricks		21 pcs	37,800 pcs
230×110×75mm Fly Ash Bricks		15 pcs	27,000 pcs
200×100×60mm holland paver		21 pcs	31,500 pcs (630 sq. mtrs)
225×112.5×80mm Zigzag paver		15 pcs	22,500 pcs (570 sq. mtrs)

Remarks: The above production is approximate indications and depends on machine settings, mix design, type of aggregates, operator’s experience, numbers of pallets (need to prepare enough pallets), etc

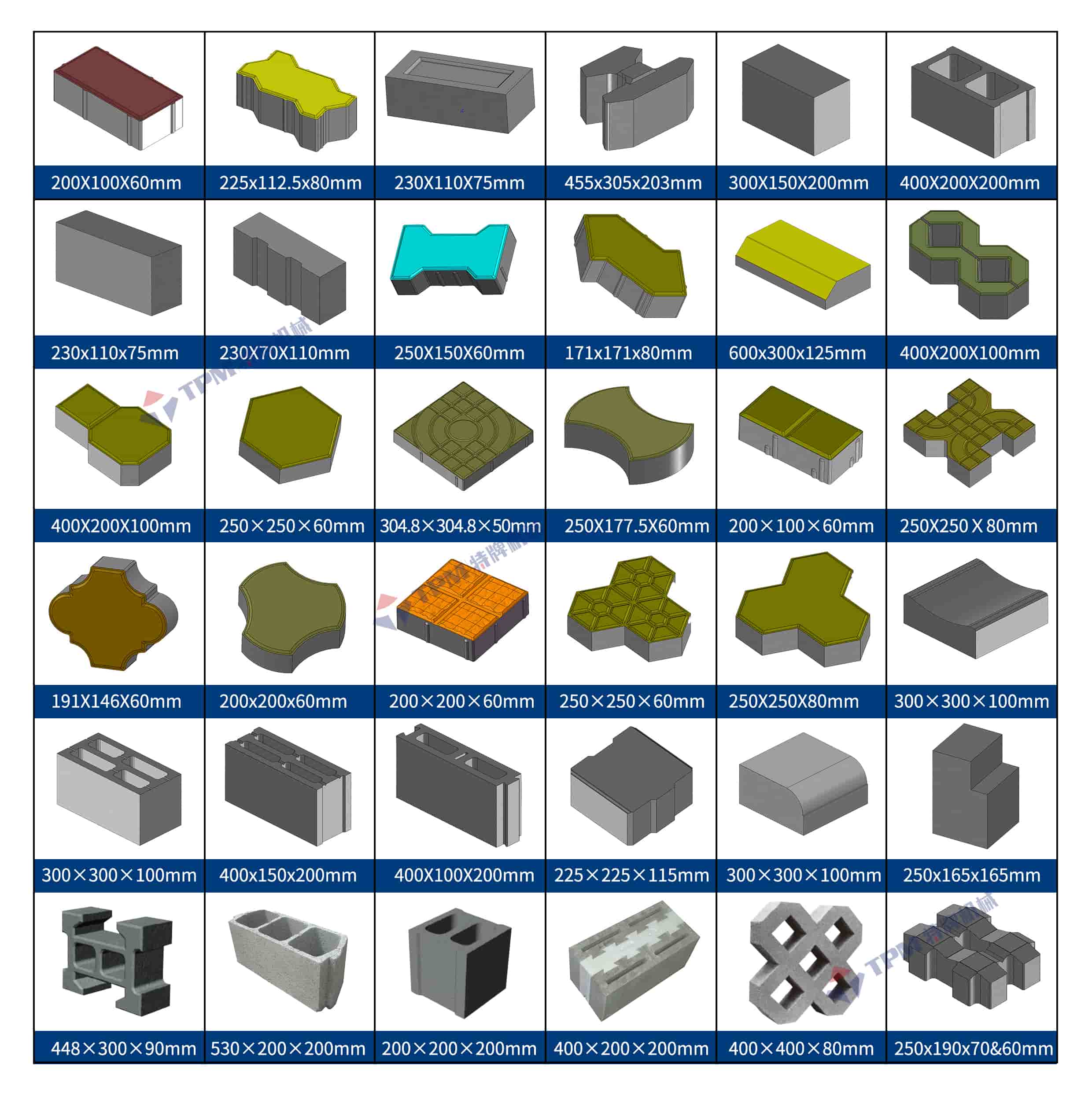

Finished Products Manufactured By TPM6000 Automatic Fly Ash Brick Machine, Hollow Bricks/Solid Blocks/Kerbstone/Interlocking Pavers/Flyash Bricks Making Machine:
