German Technology TPM5000 automatic concrete cement brick making machine

Home

Chinese Design Concrete Block Machine

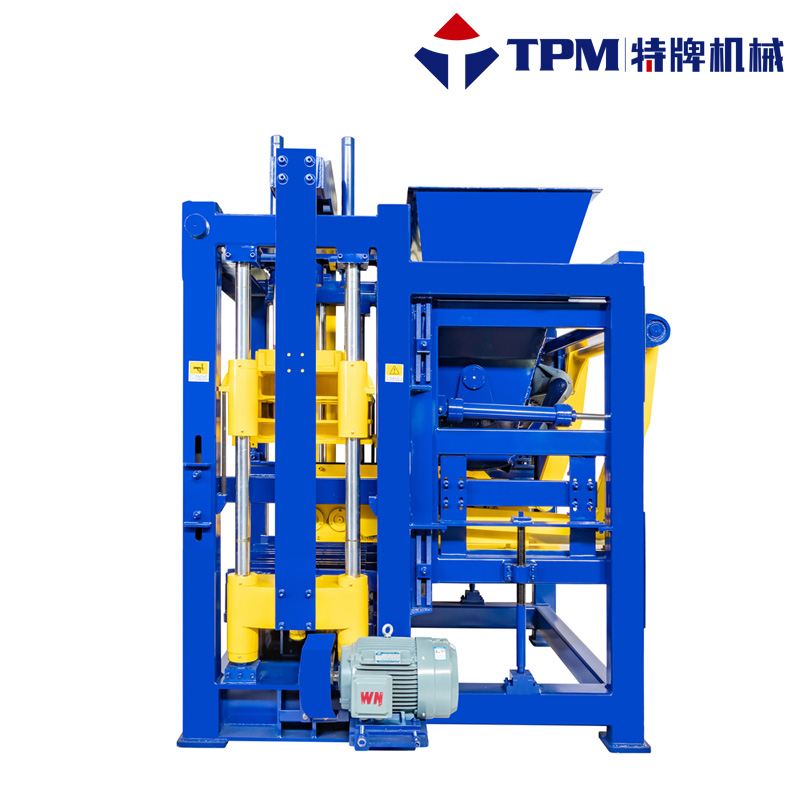

German Technology TPM5000 automatic concrete cement brick making machine

TPM5000 is a fully automatic paver block and fly ash bricks making machine. It features a Siemens PLC control system, robust 150x150x8mm square tube frame, high compaction with static & dynamic table, 2x11KW electric vibration motors, and an online troubleshooting system for quick after-sales service. This machine is designed for efficiency and durability in construction projects.

Pallet size: :
1100×560mm
Forming area: :
1040×500mm
Vibration force: :
60~80KN
Production height: :
50~200mm (Possible heighten to 500mm)
Control system: :
Germany SIEMENS PLC Control
Power consumption: :
45KW
Machine weight: :
8Ton

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Demo videos:

Technical features:

Heavy duty and robust machine structure

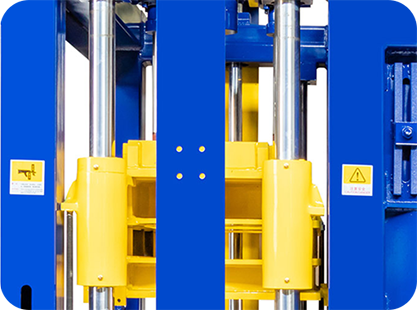

Main machine frame is built by 150x150x8mm square tube and four φ70mm solid guiding columns(strongest in this industry), ensuring stability an durability of machine structure in the long run. Also for welding it's done by Japan Panasonic pulse welding, which has no spatter, deep penetration, fine grains and high welding strength, not easy to get crack.

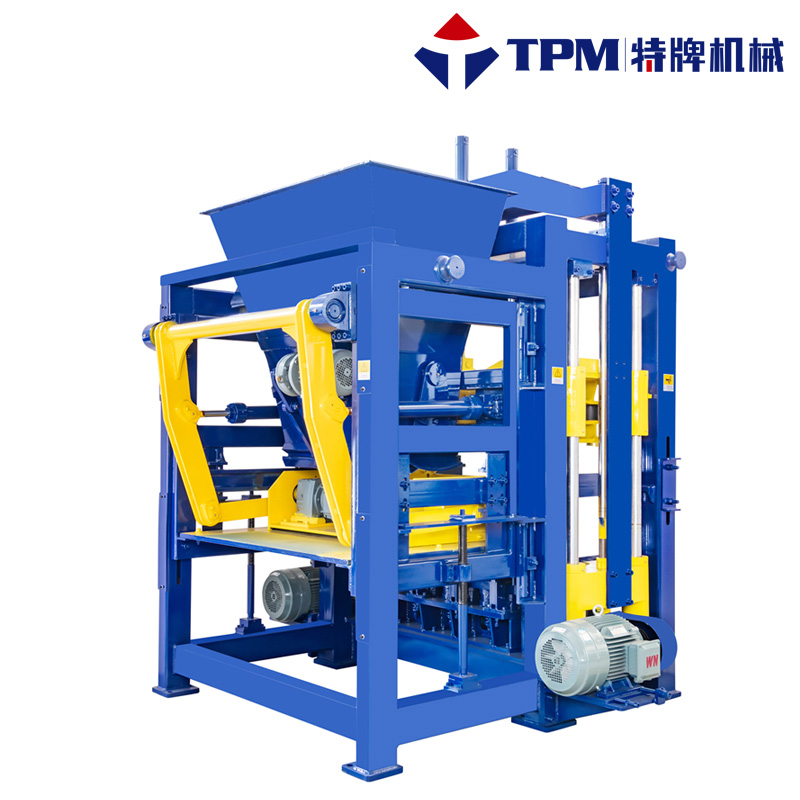

Strong swing arm design feeding car

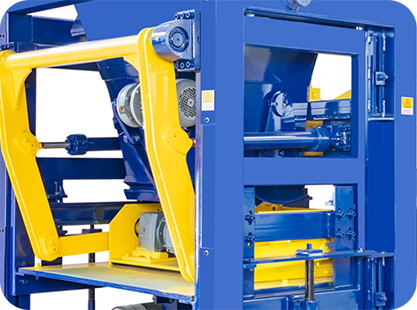

The innovative design of swing arms for feeding car, powered by 3kw mixing motors, brings more precise and powerful filling of concrete mixture into cavities. The bottom plate is made of high strength wear-resistant steels and the front end of feeding car adopts special steel NM400 for long lifetime use

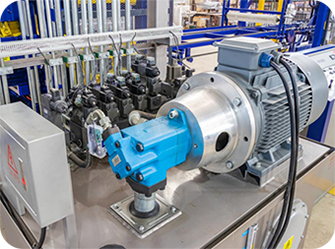

Powerful and precise hydraulic System
The hydraulic system is powered by 18.5KW hydraulic motor and 500L oil tank for powerful and precise mechanical movement. The high-dynamic double proportional valve is used to automatically adjust the system pressure and flow rate according to different load and speed requirements, so as to achieve fast and impact-free operation and save energy. Oil pipes adopt ferrule-type taper connection, which is leak-proof.

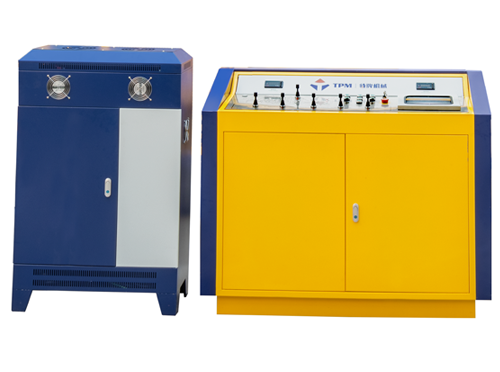

SIEMENS PLC & International electrical components
Controlled by German Siemens PLC and equipped with data input and output devices, the system has safety logic control and system fault self-diagnosis with good stability, strong adaptability for long service life, ensures continuous brick production for high quality concrete products. Adopt international brand electrical components, which is of high performance and locally available.

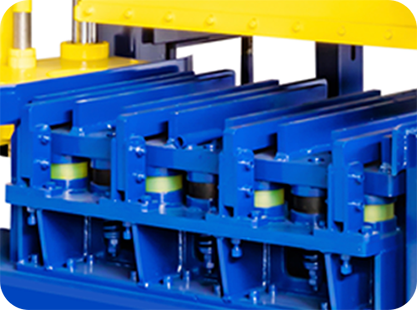

Efficient static and dynamic vibration table
Equipped with a state-of-the-art vibration table that combines both static and dynamic vibration capabilities. This dual-vibration system ensures concrete blocks are compacted uniformly and with high density. The static vibration helps in the initial compaction of the concrete mixture, while the dynamic vibration refines the process, leading to a more robust and durable end product.

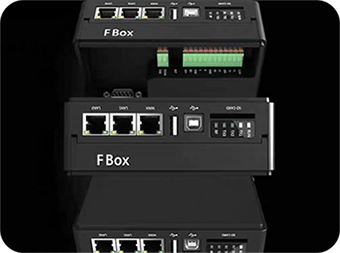

Convenient online after-sale service
The online function of real-time monitoring and troubleshooting enables swift resolution of circuit faults and most electrical issues without delay. This system provides convenient online service support for industrial brick production.

Technical Details
Pallet size: 1100×560×30mm	Vibration Force: 2×11KW (Electric vibration motors, controlled by 2 sets frequency invertors)
Forming area: 1040×520mm	Dynamic and static table help vibration more uniform
Control system: Germany SIEMENS PLC	Feeding car design: Double swing arms driven
Products height: 50~200mm (Possible heighten to 500mm)	Hydraulic system: 18.5KW
Hopper capacity: 0.75m3 (Outlet hydraulic driven)	Hydraulic system: 18.5KW
Cycle time: 12~20s	Power consumption: 45KW
Main Machine weight: 8 Ton	Vibration force: 80~100KN
Main Machine weight: 8 Ton	Vibration frequency: 50~60Hz

Production Output Data
Size	Photos	Qty. per pallet	Maximum Production capacity in 8~10 hours
400×200×200mm Hollow Block		5 pcs	7,500 pcs
400×150×200mm Hollow Block		6 pcs	9,000 pcs
220×105×70mm Stock Bricks		24 pcs	43,200 pcs
230×110×75mm Solid Bricks		16 pcs	28,800 pcs
200×100×60mm Holland Paver		20 pcs	30,000 pcs
225×112.5×80mm Zigzag Paver		16 pcs	24,000 pcs

Remarks: The above daily brick production capacity is approximate indications and depends on machine settings, concrete mix design, type of aggregates, operator’s experience, numbers of pallets (need to prepare enough pallets), etc

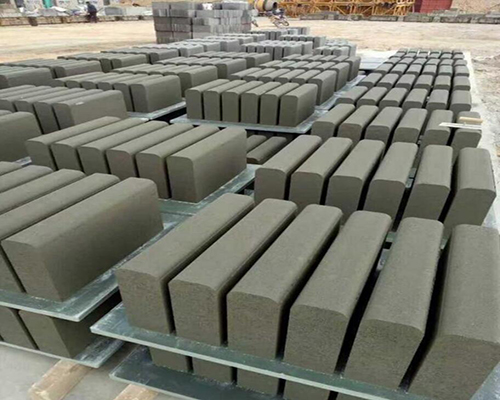

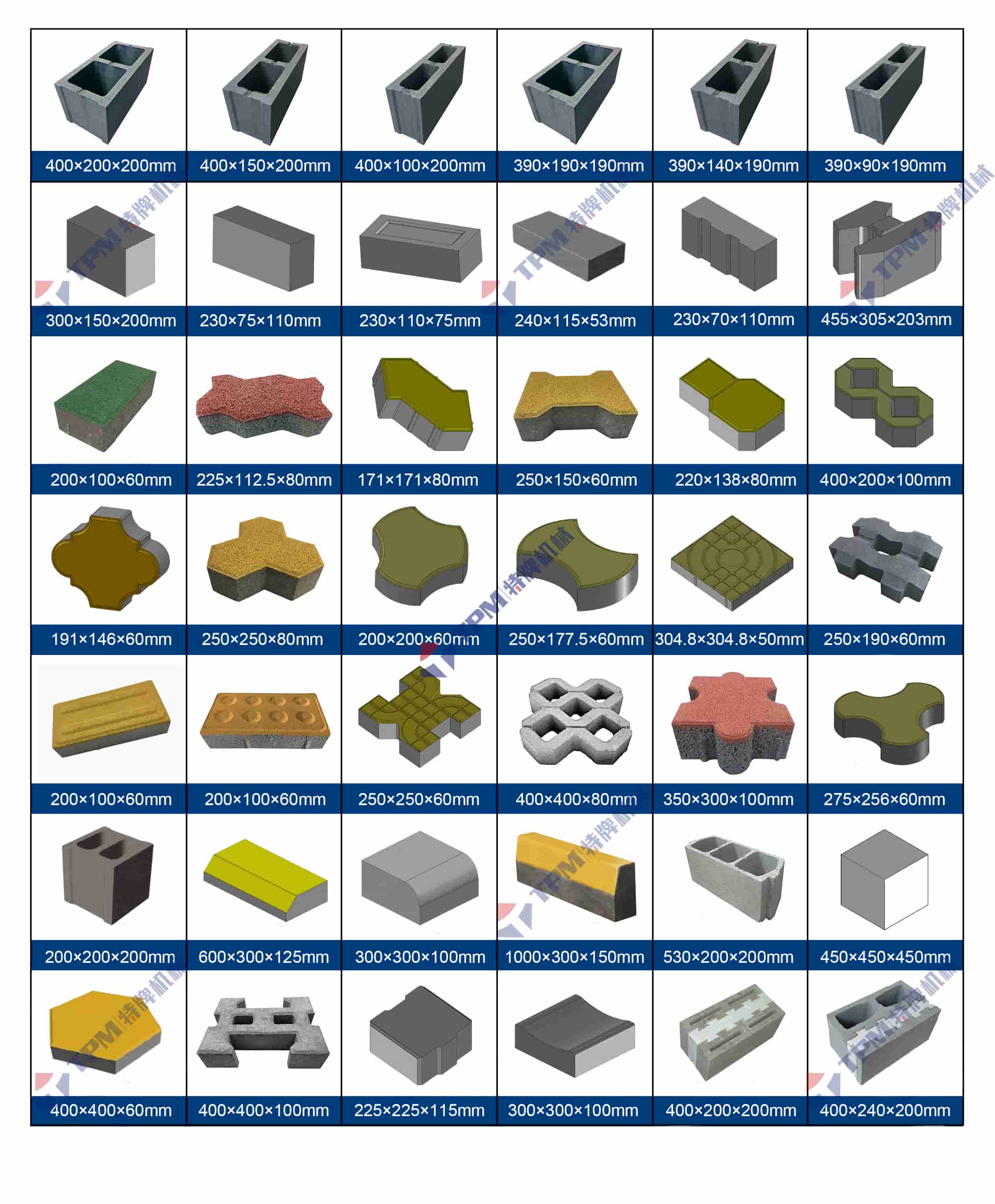

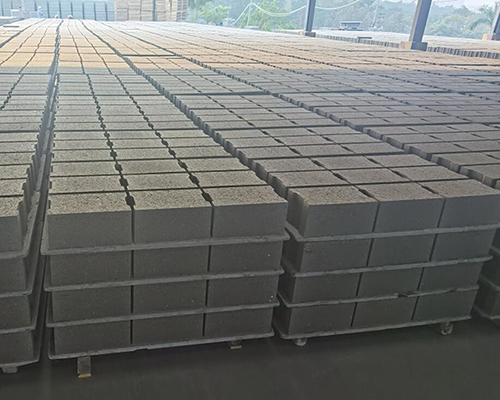

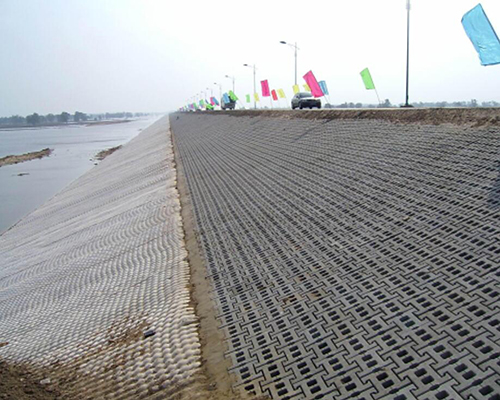

Finished Products Manufactured By TPM5000 Automatic Concrete Cement Brick Machine, Hollow Bricks/Solid Blocks/Kerbstone/Interlocking Pavers/Flyash Bricks Making Machine:

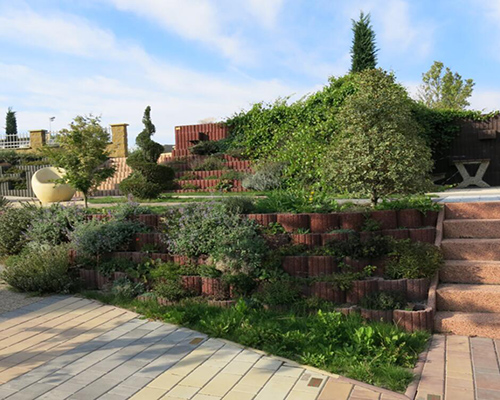

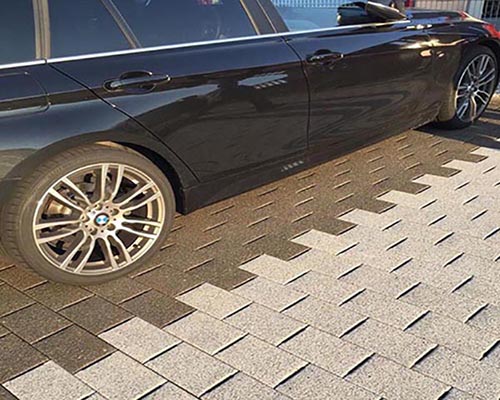

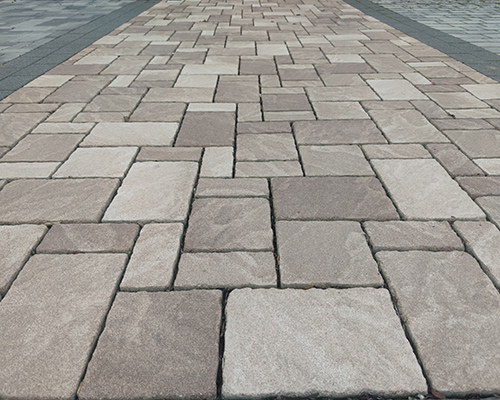

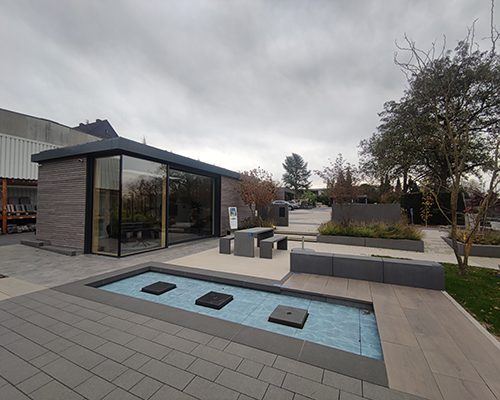

Application:
